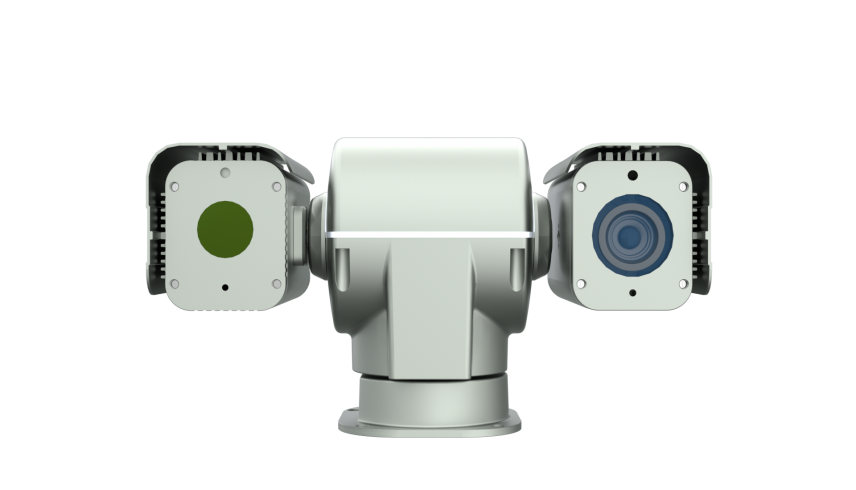

Model number | KE-A335SE33 |
Thermal imaging parameters | Detector type | Vanadium oxide uncooled infrared focal plane detector |
Infrared resolution | 384 x 288 |
pixel spacing | 12μm |
Operating band | 8 to 14μm |
Noise Equivalent Temperature Difference (NETD) | ≤50mK(@25°C,F#1.0) |
Focal length | 35mm |
Field of view | 7.5° x 5.7 ° |
Maximum area covered | 20,000m2 |
Palette | White Hot / Black Hot / Iron Red / Lava / Rainbow / Iron Grey / Red Hot / Blue Red (8 pseudo colours in total) |
Visible light parameters | Sensor type | 1/2.8' high performance CMOS |
Pixel | 2 million |
Resolution | 1920 x 1080 |
Focal length | 4.8 - 158mm |
Optical zoom | 33 times |
Low light levels | Colour: 0.001 Lux @(F1.5,AGC ON); B&W: 0.0005 Lux @(F1.5,AGC ON) |
Focusing methods | Manual / semi-automatic |
Cloud Station Parameters | Horizontal rotation angle range | 0° to 360° |
Horizontal rotation speed | 0.5° to 60°/s, speed can be set |
Vertical rotation angle range | -90° to +90° |
Vertical rotation speed | 0.5° to 45°/s, speed can be set |
Cruise preset position | Supports 8 cruise lines with 256 presets per cruise line |
System functions | Multi-target heat source detection | Supports simultaneous detection of multiple target heat sources |
Over temperature alarm | The system generates warnings and alarms on the local HMI when readings exceed the set value |
Temperature measurement accuracy | ±2°C or ±2% of the reading (taking the maximum) |
Heat source tracking | Support |
Intelligent shielding | Supports dynamic and static blocking functions, capable of blocking false alarms |
Perimeter systems | Area intrusion detection, border crossing detection, area entry detection, area exit detection |
Independent zoning | The function settings for each preset position are independent and do not interfere with each other |
Cruise scanning method | Supports preset bit scanning, angle scanning |
System compatibility | The system is compatible with an unlimited number of devices and can support up to 18 devices with simultaneous screen output |
Alarm trend logging | The system records digital data with an upward trend when the set alarm value is exceeded |
Independent alarm | System supports independent setting of alarm values for different components |
Alarm video capture | The system automatically records 10 minutes of thermal imaging video before and after the alarm occurs for targets that exceed the set alarm value |
Step Alarm | The system can generate different alarm alerts depending on the temperature rise trend |
Automatic recording of temperature data | System can be freely set for temperature data collection time |
History | The system is able to record the points identified by the warming trend as a historical record |
Parameter docking | Platform docking | The system supports connection to remote monitoring systems on site and provides an SDK for data interfacing |
